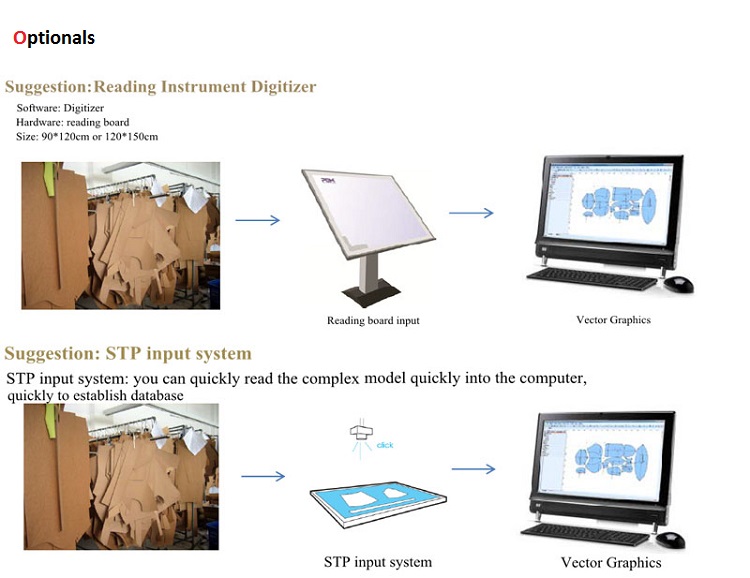

| Optional: | |
| Quantity: | |
Model |
YZ1625S |
YZ1630S |
YZ1610S |
Working size | 1600*2500mm | 1600*3000mm | 1600*1000mm |
Max. Cutting Thickness | 0-50mm | ||
Pick up area | 1200mm | ||
Working Table | Conveyor System | ||
Max.cutting speed | 0-1500mm/s | ||
Motion System | Digital servo motor & driver | ||
Repeat location accuracy | ± 0.01mm | ||
Voltage | AC220V/50HZ AC380V/50HZ 60HZ | ||
Media Fixture Method | Section Vacuum System | ||
Pump Power | 5.5KW/7.5KW/9KW/11KW | ||
Operating Environment | Temperature 0-40℃ Humidity 20%-80% RH | ||
User Control | Color Control panel & Touch Screen control Panel | ||

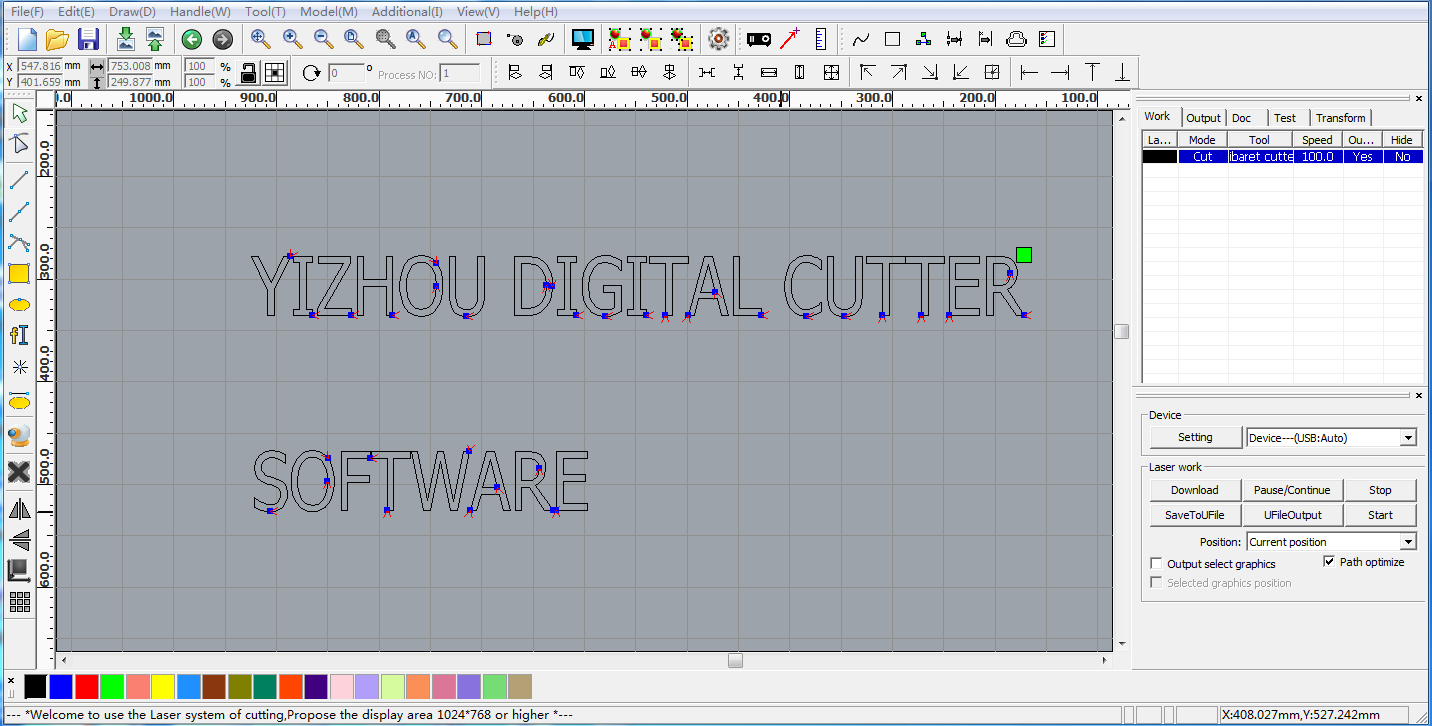

Software | YIZHOU CAD | ||
Format support | AI/DXF/DWG/JPG/BMP/PLT/DST CorelDraw/PhotoShop/AutoCAD/Illustrator | ||
Interface | USB/LAN/Serial Port | ||
Model |
YZ1625S |
YZ1630S |
YZ1610S |
Working size | 1600*2500mm | 1600*3000mm | 1600*1000mm |
Max. Cutting Thickness | 0-50mm | ||
Pick up area | 1200mm | ||
Working Table | Conveyor System | ||
Max.cutting speed | 0-1500mm/s | ||
Motion System | Digital servo motor & driver | ||
Repeat location accuracy | ± 0.01mm | ||
Voltage | AC220V/50HZ AC380V/50HZ 60HZ | ||
Media Fixture Method | Section Vacuum System | ||
Pump Power | 5.5KW/7.5KW/9KW/11KW | ||
Operating Environment | Temperature 0-40℃ Humidity 20%-80% RH | ||
User Control | Color Control panel & Touch Screen control Panel | ||
Software | YIZHOU CAD | ||
Format support | AI/DXF/DWG/JPG/BMP/PLT/DST CorelDraw/PhotoShop/AutoCAD/Illustrator | ||
Interface | USB/LAN/Serial Port | ||
