Cutting Machine Electricity connection

Views: 10     Author: Site Editor     Publish Time: 2021-06-21      Origin: Site

Electricity connection

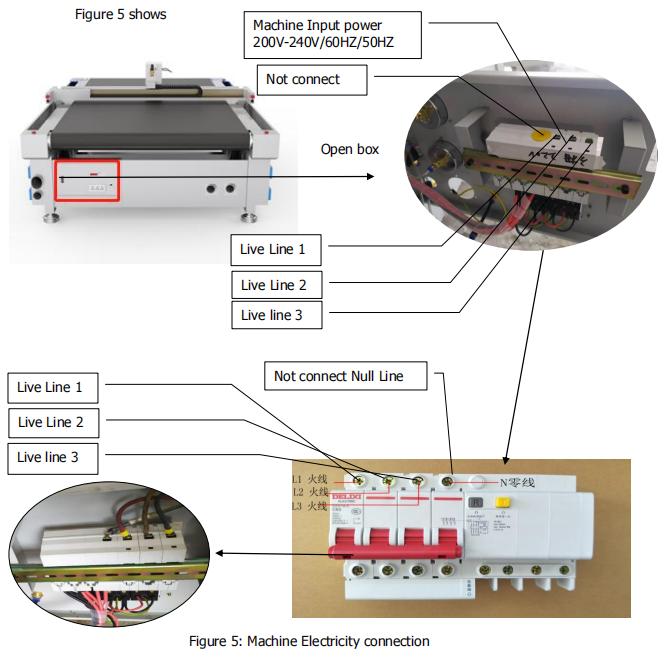

1) Machine input power connection

Open the back electrical box of machine, Connect 220V-240V/60HZ voltage three  phase as


图5


2) Vacuum pump installation and electricity connection

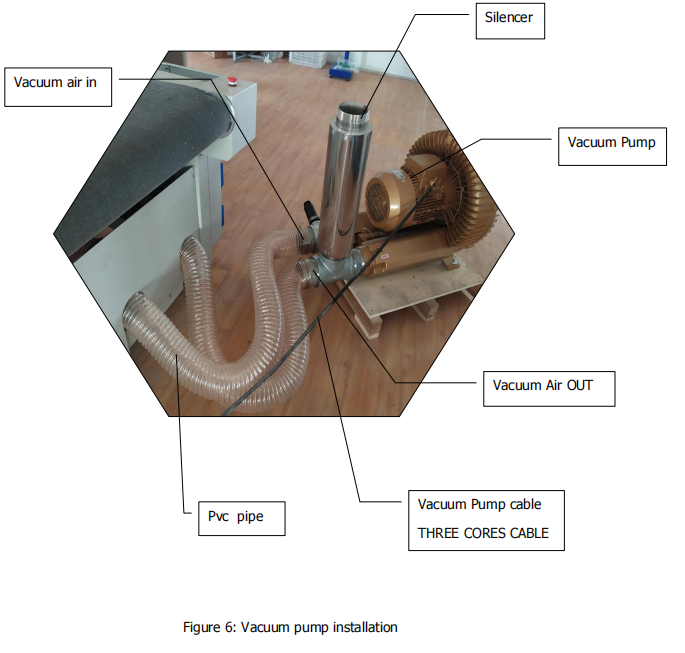

2-1)vacuum pump installation

图6

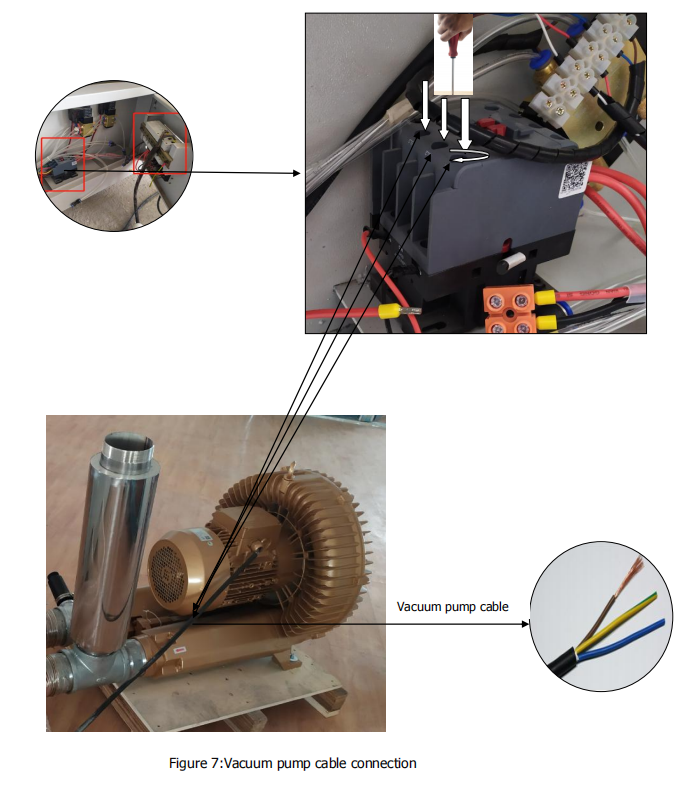

2-2)Vacuum pump electricity connection to machine


图7
