Machine control software Installation

Views: 9     Author: Site Editor     Publish Time: 2021-06-29      Origin: Site

Machine control software Installation


Find the U disk, and insert to computer. We start to install the machine control  software.

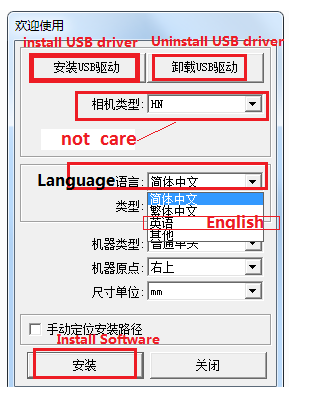

Try to find VCUT software setup files. Double click to install the software and USB  driver

软件安装


软件安装1

Donot forget to install USB driver.

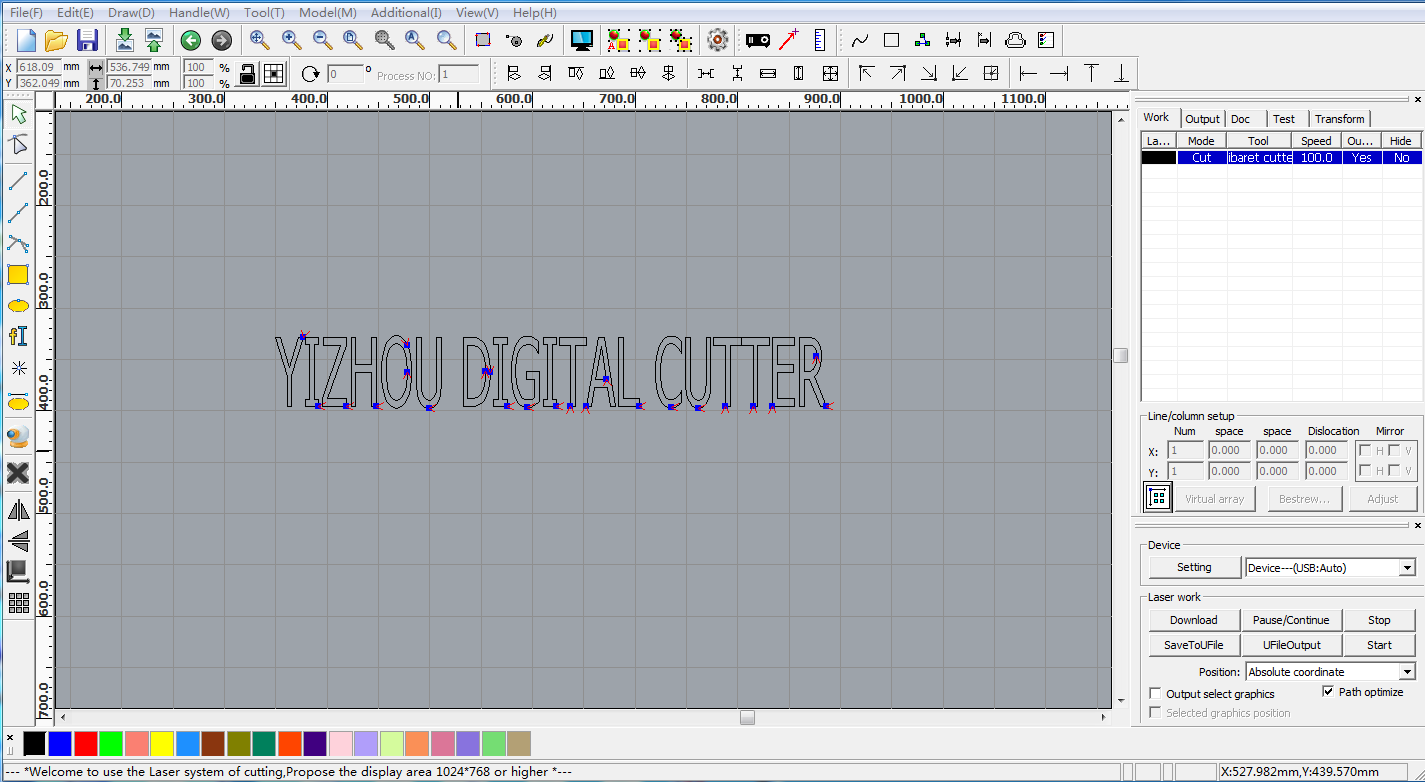

After finish install software, you will see the following

软件界面


How to make software to control machine


You can control machine by USB cable or web cable, any one of them is ok.


1.USB cable connect to machine from computer

连接到机器


2.USB cable control


Connect USB cable from computer and machine “USB cable” connector, Turn on the machine, after that, open VCUT software.

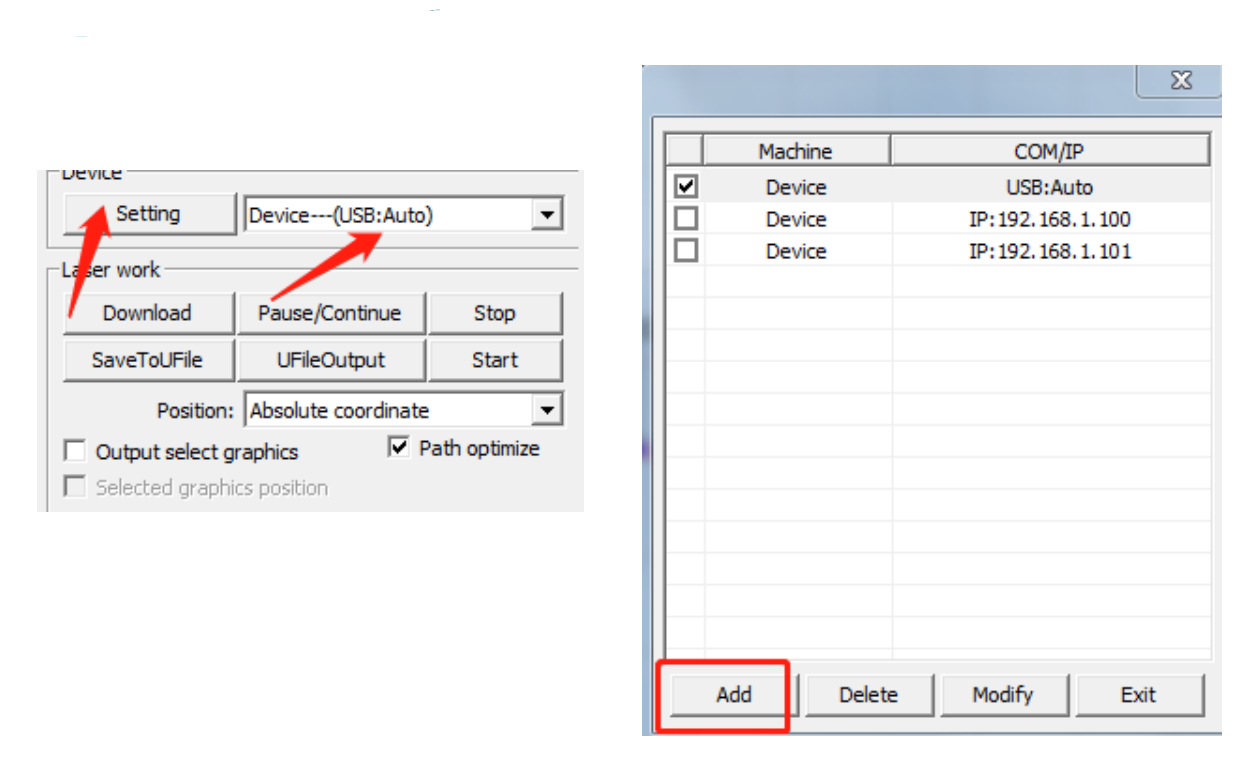

CHOOSE DEVICE------(USB:AUTO)

Click Settings and CLICK ADD

机器控制

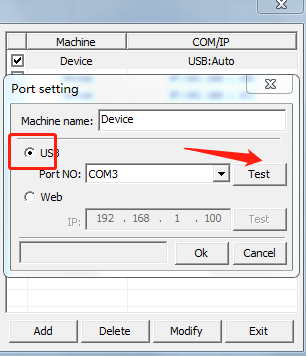

CHOOSE USB and click TEST, if notice successful, it will be ok

机器控制1

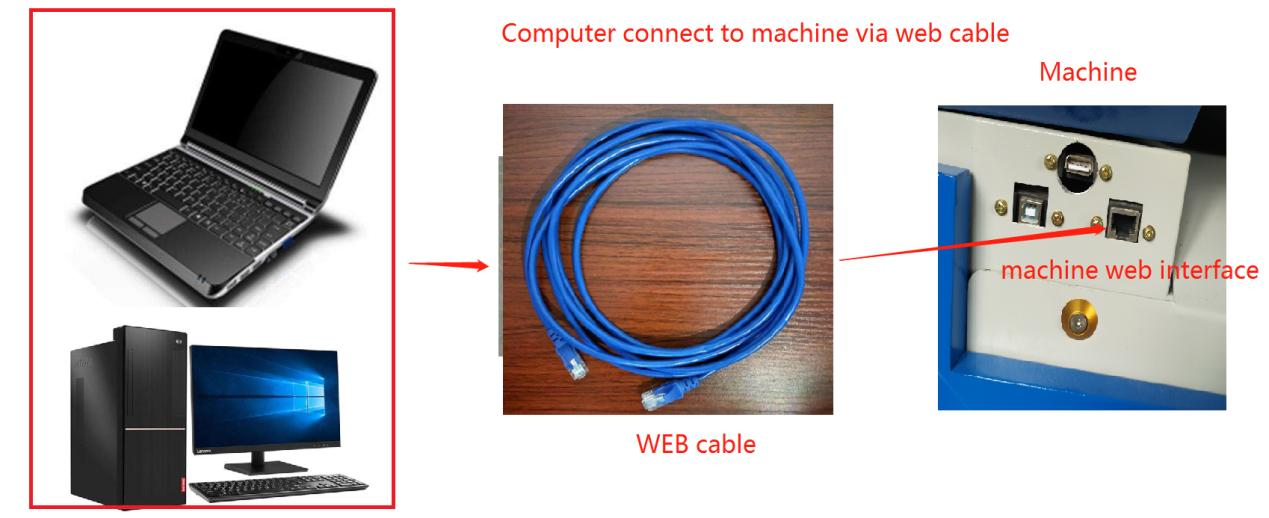

3.Web Cable control machine.


网线连接机器


Find the NET cable from tool box, connect computer and machine

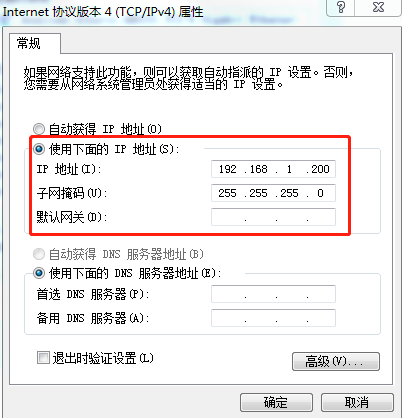

Turn on the machine, change the computer IPV4 Parameters:

Input the ip address between 192.168.1.1----------192.168.1.255,not choose  192.168.1.100

Computer IPV4 parameter should be different from software IP address.

网线

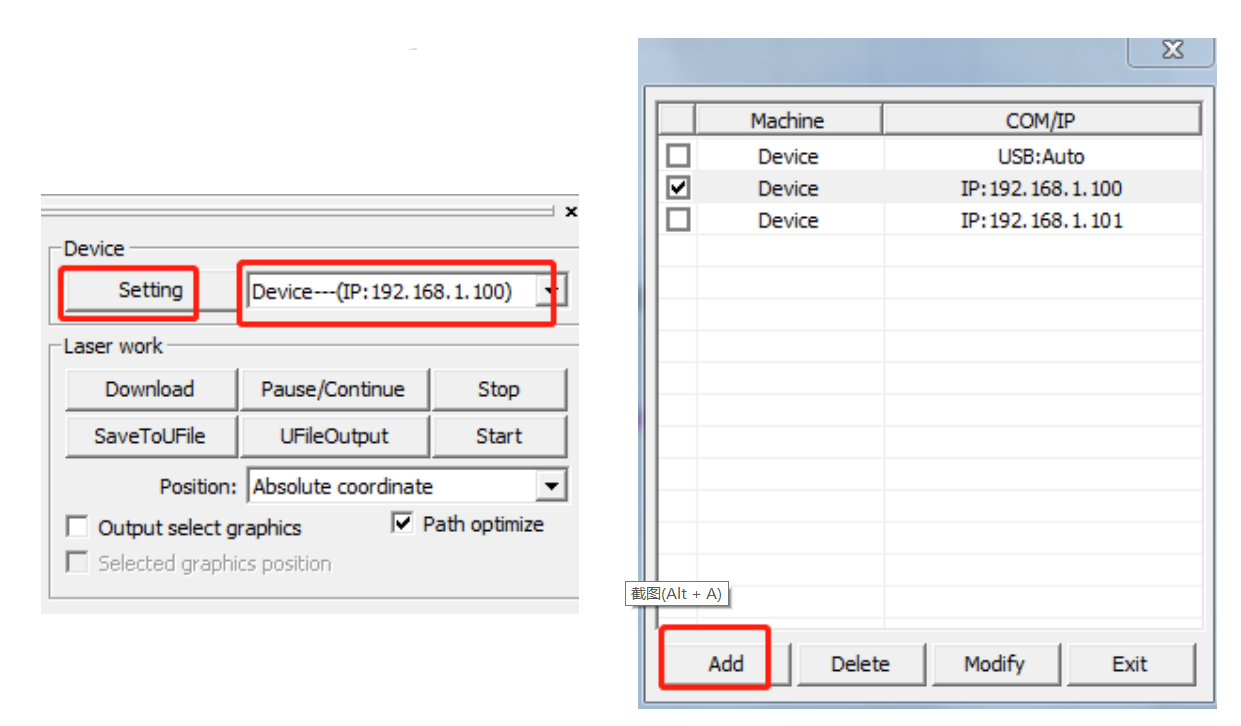

open the VCUT software Choose DEVICE----IP(192.168.1.100) CLICK SETTINGS

网线2

网线3
