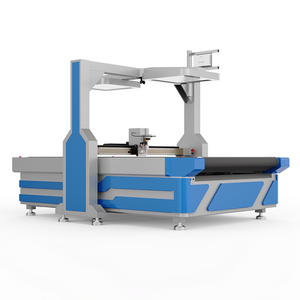

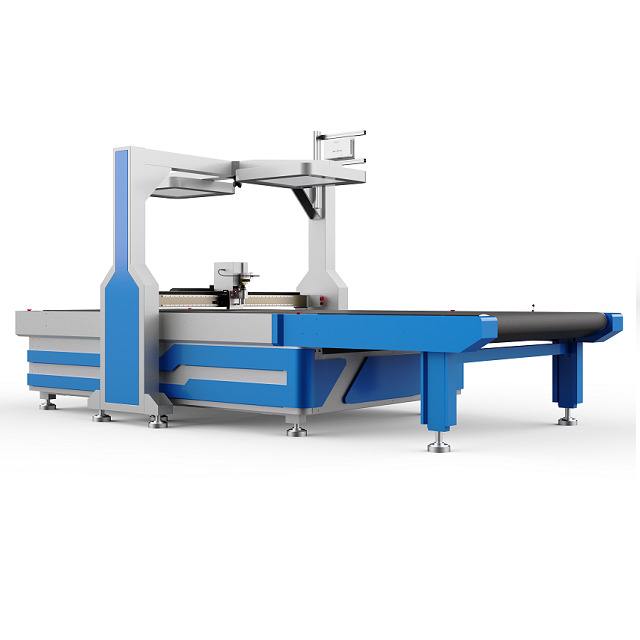

Cut leather, sole, lining, or stencil materials with a YIZHOU digital cutter. No expensive dies, just precise and efficient cutting of all shoe materials on a YIZHOU digital cutting system. Because of their modular design, YIZHOU cutters can be made to perfectly match your cutting needs.
This Model is Plus table type.
Cutting Material | Nature leather,artificial leather,leather insole,upper leather Saddle leather,Synthetic leather,sole materials etc |
Cutting Model | YZ-2516L: 2.500 mm x 1.600 mm YZ-3016L:3.000 mm x 1.600 mm Pick up area:1200*1600mm |
Cutting Speed | ≤ 1.500 mm/s |
Cutting Depth | ≤ 50 mm nature leather 0-9mm |
Cutting Accuracy | ≤ 0,1 mm |
Media Fixture Method | Vacuum System |
Pump Power | 7.5KW / 9KW/11KW |
Operating Environment | Temperature 0°C - 40°C Humidity 20% - 80% RH |

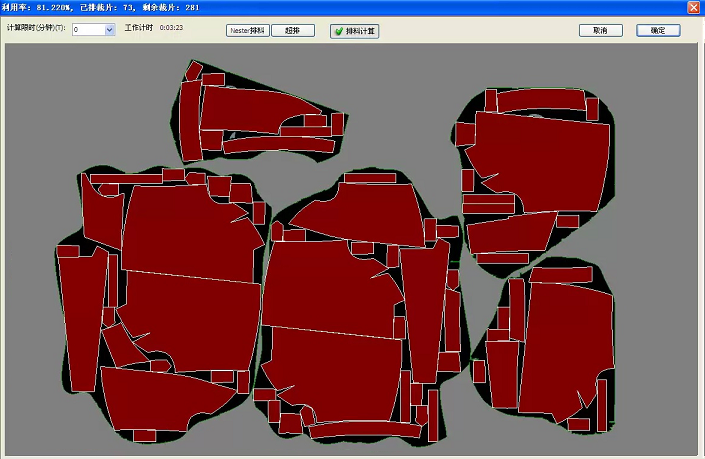

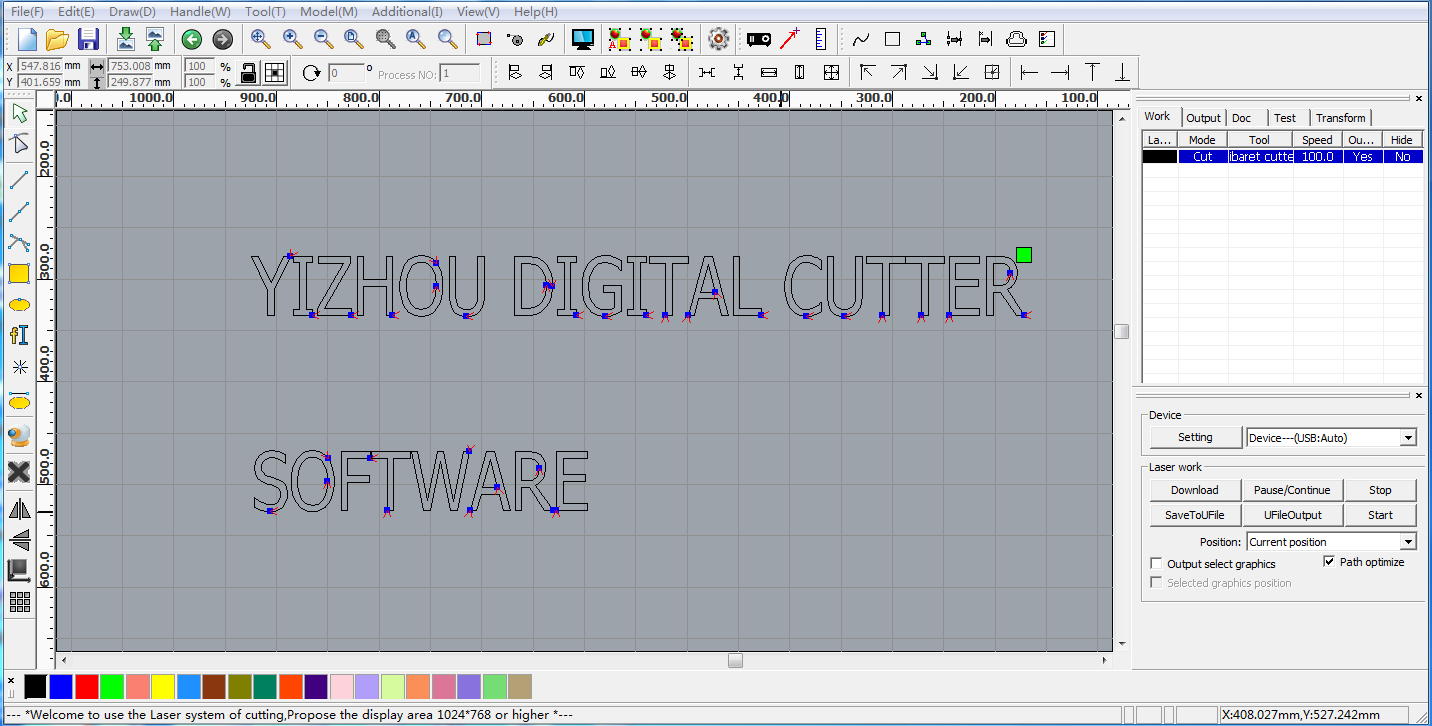

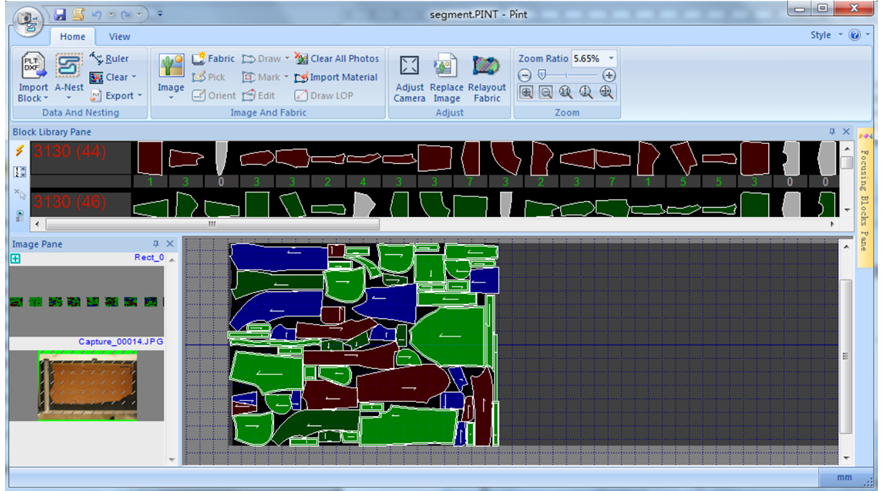

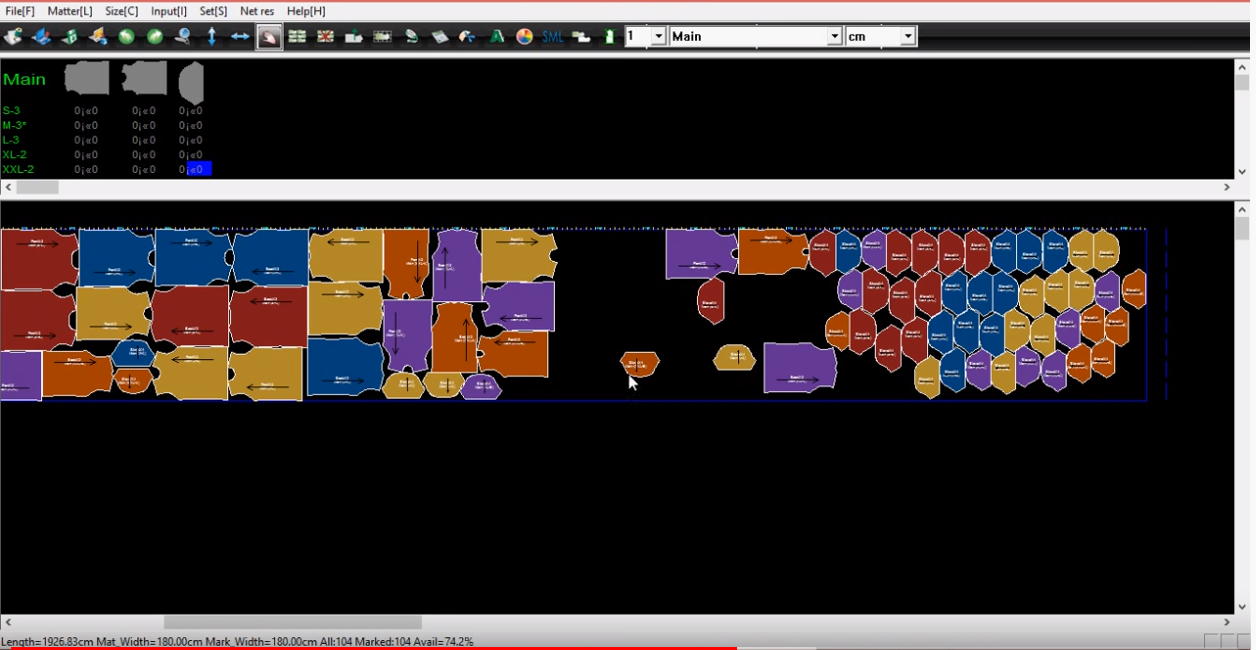

Software | Nature leather software+YIZHOU CAD control software |
Required data files | DXF, HPGL, PLT,AI |
Interface | USB/ LAN /Serial Port |
Power Supply | AC380V/50Hz/60HZ Three phase |
