YIZHOU Cutting Machine View And Feature

Views: 45     Author: Site Editor     Publish Time: 2021-05-31      Origin: Site

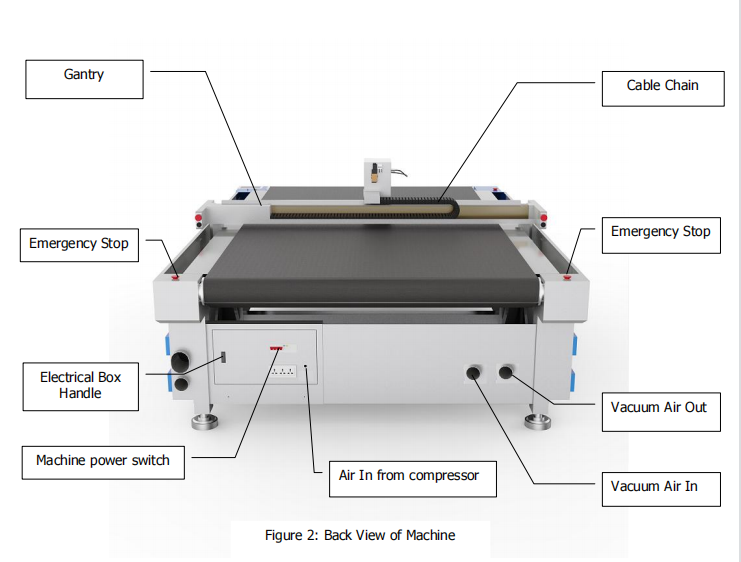

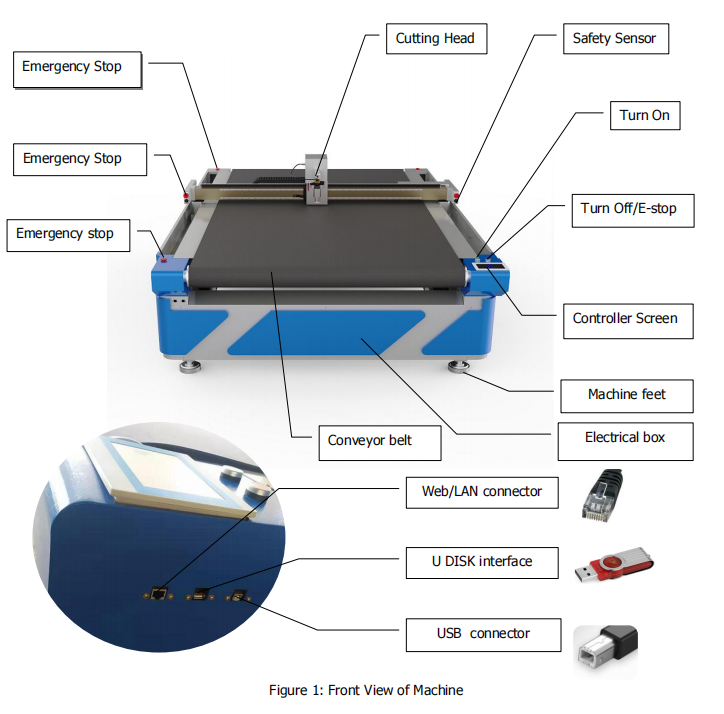

Machine view



Machine feature and parameters

Model YZ1610/YZ1625/YZ1630
YZ1625 1600*1000mm/1600*2500mm/1600*3000mm
Max. cutting thickness 0-50mm depend on materials
Characteristic Computer operation, data transmission fast
Cutting speed 0-1800mm/s
Motor and driver Motor and driver
Oscillating Knife frequency  18000 rotate/min
Cutting head type Electrical oscillating cutting head
Material fixing method vacuum absorption
Machine resolution  0.025mm

Software resolution 0.025mm
Transmission interface USB/WEB
Gearing  PMI Linear guide and gear rack
Memory  128MB
Software program HP-GL drive language, support dxf, plt,Ai format
Controller  touch screen, support multi language
Input Voltage  AC200V-240V/60HZ Three phase(According to local voltage requirements)
Air pump power  9KW
Packing size  2.2*3.15*1.3m
N.W/G.W  1200kgs/1500KGS
