| Working size: | |
|---|---|
| Table: | |
| Quantity: | |

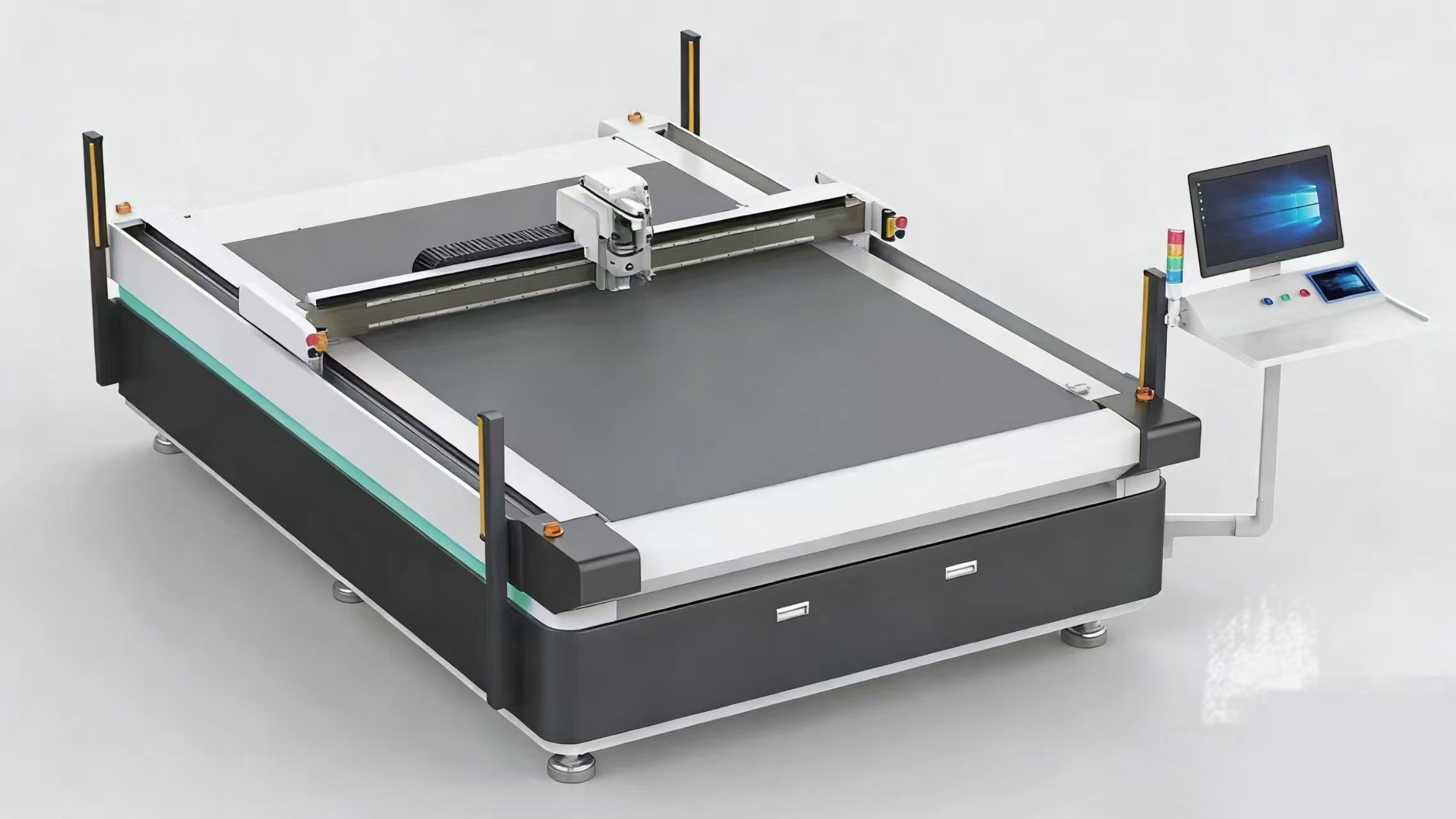

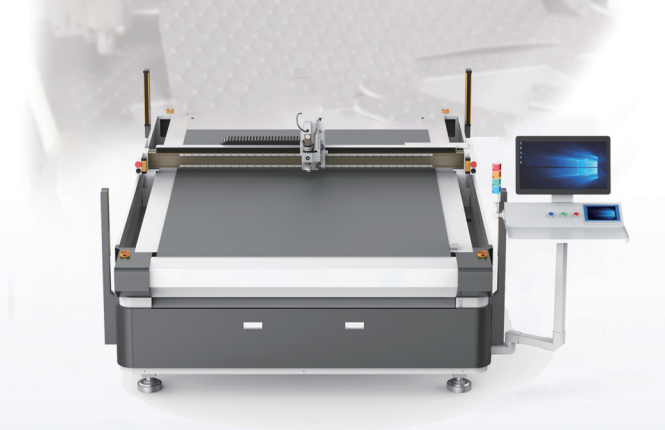

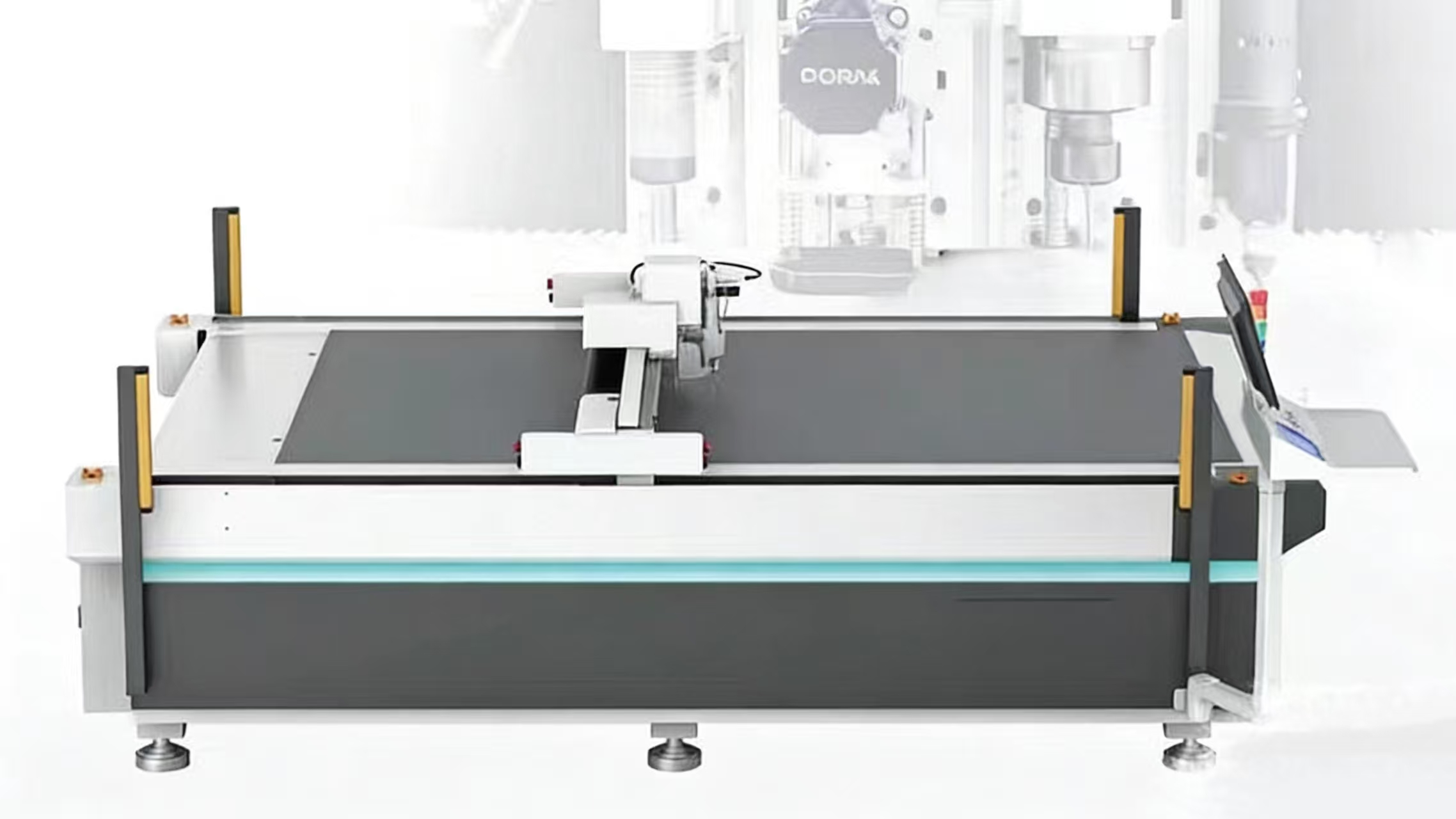

Model | YZ1625F |
Working size | 1600*2500mm |
Max.cutting speed | 0-1500mm/s |
Cutting depth | ≤50mm（according to material） |
Cutting head | EOT/DRT/CTT/VCT/POT |
Materials fixed method | Section vacuum |
Transmission | HIWIN/PMI linear rail+rack gears |
Cables | High flexible line with UL certificate |
Safety sensor | In fared light |
Motor&driver | Panasonic A6 series C/D axis:100W;X:400W,Y:750W |
Conveyor felt | 4mm thickness diamond jointed imported |
Working table | 42.5mm thickness aluminum honeycomb table |
Min.circle | 3mm |
Controller | RUIDA 6584G main board with touch screen panel |
Symmetrical cuttingerror | 0.01mm |
Machine body | 8mm+6mm thickness steel tube welding |
Table level | Left-right side:0.01mm front-back side:0.02mm |
air pressure supply | 0-0.3MPA |
Repeatability positioning accuracy | ±0.01mm |
Working power supply | AC380V/50HZ 60HZ THREE PHASE |
Cable | 8-10 square meters |
Vacuum power | 9KW |
Total power | <=14KW |
Operating temperature | 0°C-40°C |
Humidity | 5%-95% |
Support format | DXF,PLT,AI ETC. support AUTOCAD,CORELDRAW,PGM,BOKE,GERBER, ETC |
N.W/G.W | 1100KGS/1200KGS |
