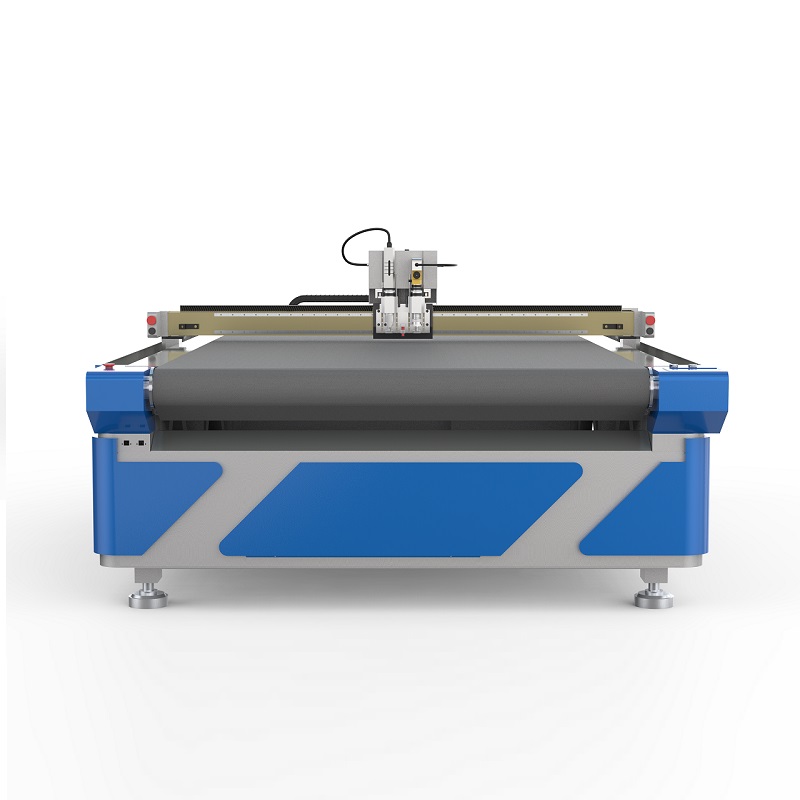

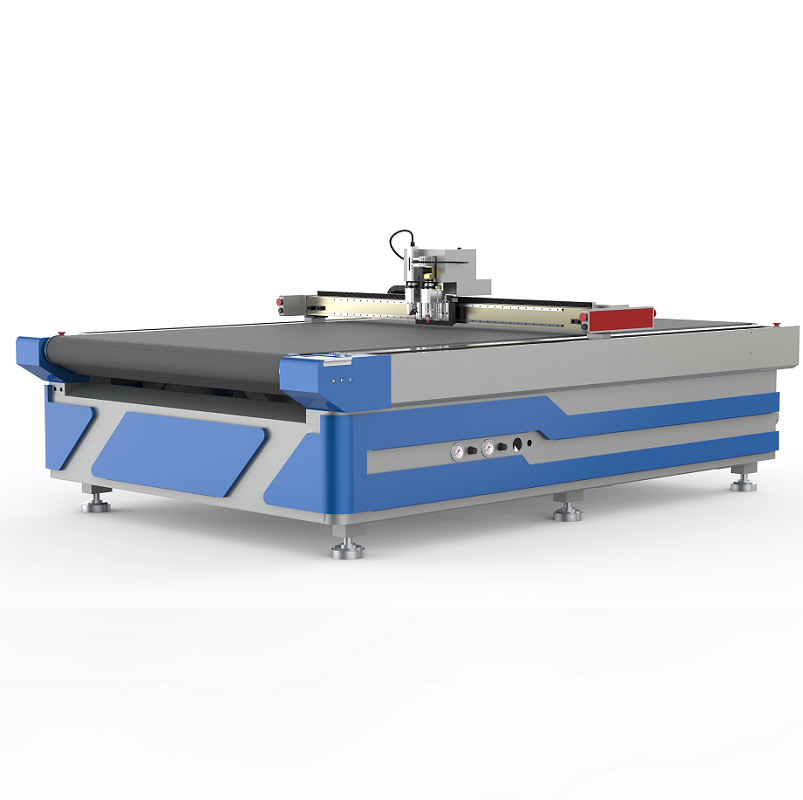

>>YZ1625M Paper Honeycomb Board Cutting Machine
The YIZHOU Digital Cutting System is a high precision system what can realize through cutting, kiss cutting, milling,
Conveyor system for each size, Optional for Electric Oscillating Tool, Pneumatic Oscillating Tool, CNC Router, V-Cut Tool,
Kiss-Cut Tool, Driven Rotary Tool, CCD Camera Registration System, Autoloader, Projector, Nature Leather System
punching, creasing and marking functions with high seed and high precision. With autoloader, it can complete the material
with different cutting tools, suitable for different kind of materials. feeding and collecting quickly. It is quite suitable for sample making,
short run and mass production in sign, advertising, printing and packaging.
>>YZ1625M Paper Honeycomb Board Cutting Machine
The YIZHOU Digital Cutting System is a high precision system what can realize through cutting, kiss cutting, milling,
Conveyor system for each size, Optional for Electric Oscillating Tool, Pneumatic Oscillating Tool, CNC Router, V-Cut Tool,
Kiss-Cut Tool, Driven Rotary Tool, CCD Camera Registration System, Autoloader, Projector, Nature Leather System
punching, creasing and marking functions with high seed and high precision. With autoloader, it can complete the material
with different cutting tools, suitable for different kind of materials. feeding and collecting quickly. It is quite suitable for sample making,
short run and mass production in sign, advertising, printing and packaging.
Model | YZ1625M |
Working size | 1600*2500MM |
Max. Cutting Thickness | 0-50mm |
Cutting type | Electric Oscillating Tool+V-Cut Tool/Creasing Tool |
Working Table | Conveyor System |
Max.cutting speed | 0-1500mm/s |
Motion System | Digital servo motor & driver |
Repeat location accuracy | ± 0.01mm |
Voltage | AC220V/50HZ AC380V/50HZ 60HZ |
Media Fixture Method | Section Vacuum System |
Pump Power | 5.5KW/7.5KW/9KW/11KW |
Operating Environment | Temperature 0-40℃ Humidity 20%-80% RH |
User Control | Color Control panel & Touch Screen control Panel |
Software | YIZHOU CAD |
Format support | AI/DXF/DWG/JPG/BMP/PLT/DST CorelDraw/PhotoShop/AutoCAD/Illustrator |
Interface | USB/LAN/Serial Port |
Model | YZ1625M |
Working size | 1600*2500MM |
Max. Cutting Thickness | 0-50mm |
Cutting type | Electric Oscillating Tool+V-Cut Tool/Creasing Tool |
Working Table | Conveyor System |
Max.cutting speed | 0-1500mm/s |
Motion System | Digital servo motor & driver |
Repeat location accuracy | ± 0.01mm |
Voltage | AC220V/50HZ AC380V/50HZ 60HZ |
Media Fixture Method | Section Vacuum System |
Pump Power | 5.5KW/7.5KW/9KW/11KW |
Operating Environment | Temperature 0-40℃ Humidity 20%-80% RH |
User Control | Color Control panel & Touch Screen control Panel |
Software | YIZHOU CAD |
Format support | AI/DXF/DWG/JPG/BMP/PLT/DST CorelDraw/PhotoShop/AutoCAD/Illustrator |
Interface | USB/LAN/Serial Port |
