YZ1325
YIZHOU
Availability: | |
---|---|
Quantity: | |

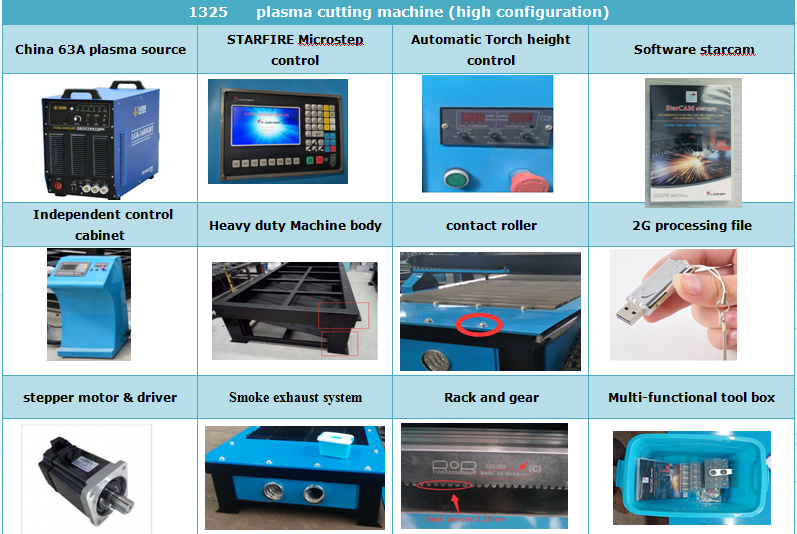

Model | YZ1325 63A-200A Plasma cutting machine (high configuration |
X,Y working area | 1300*2500mm |
Z working area | 150mm |
Packing dimension | 2260mm*3350mm*1850mm |
Lathe bed | Very thick steel structure |
Machine Power | 8.5kw |
Working voltage | 380V three phase 60hz |
Reposition precision | 0.02mm |
Processing precision | 0.1mm |
Maximum cutting speed | 12000mm/min |
Torch Height control mode | Automatic |
Cutting Materials | carbon steel, aluminum,copper,steel,stainless steel |
Plasma power supply | LGK63A-200A |
Control system | STARfire |
Motors | Stepper motor |
Software | Starcam |
Weight | 1400KG |
Plasma Air Pressure | Max.0.8Mpa |
Working Temperature | -10°C-60°C. Relative Humidity, 0-95%. |
LCD Display Dimension | 7 Inches |
Model | YZ1325 63A-200A Plasma cutting machine (high configuration |
X,Y working area | 1300*2500mm |
Z working area | 150mm |
Packing dimension | 2260mm*3350mm*1850mm |
Lathe bed | Very thick steel structure |
Machine Power | 8.5kw |
Working voltage | 380V three phase 60hz |
Reposition precision | 0.02mm |
Processing precision | 0.1mm |
Maximum cutting speed | 12000mm/min |
Torch Height control mode | Automatic |
Cutting Materials | carbon steel, aluminum,copper,steel,stainless steel |
Plasma power supply | LGK63A-200A |
Control system | STARfire |
Motors | Stepper motor |
Software | Starcam |
Weight | 1400KG |
Plasma Air Pressure | Max.0.8Mpa |
Working Temperature | -10°C-60°C. Relative Humidity, 0-95%. |
LCD Display Dimension | 7 Inches |
Cutting Thickness reference to carbon steel
Plasma Power | Quality Cutting thickness | Max. Cutting thickness |
63A | 8mm | 12mm |
100A | 18mm | 25mm |
120A | 18mm | 25mm |
160A | 25mm | 35mm |
200A | 30mm | 40mm |
Cutting Thickness reference to carbon steel
Plasma Power | Quality Cutting thickness | Max. Cutting thickness |
63A | 8mm | 12mm |
100A | 18mm | 25mm |
120A | 18mm | 25mm |
160A | 25mm | 35mm |
200A | 30mm | 40mm |

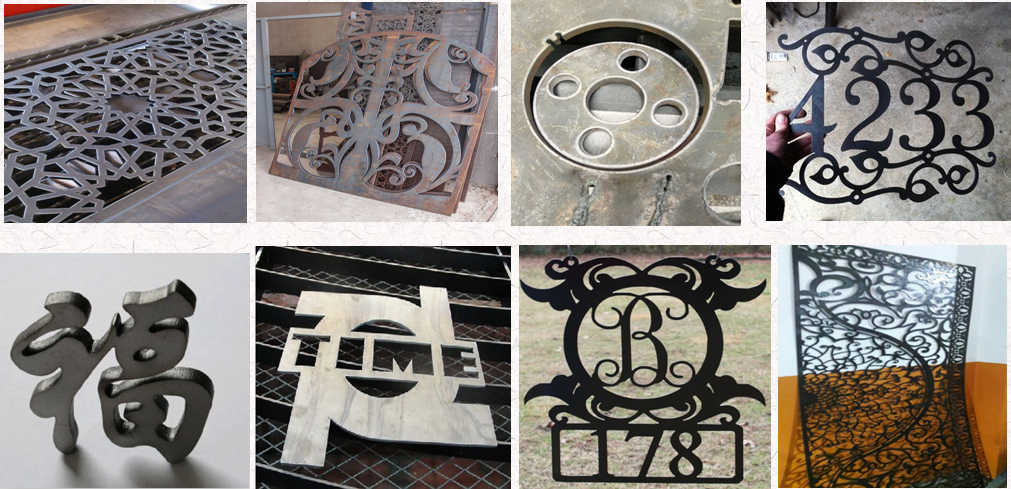

CNC Plasma Cutting Machine Samples
CNC Plasma Cutting Machine Samples

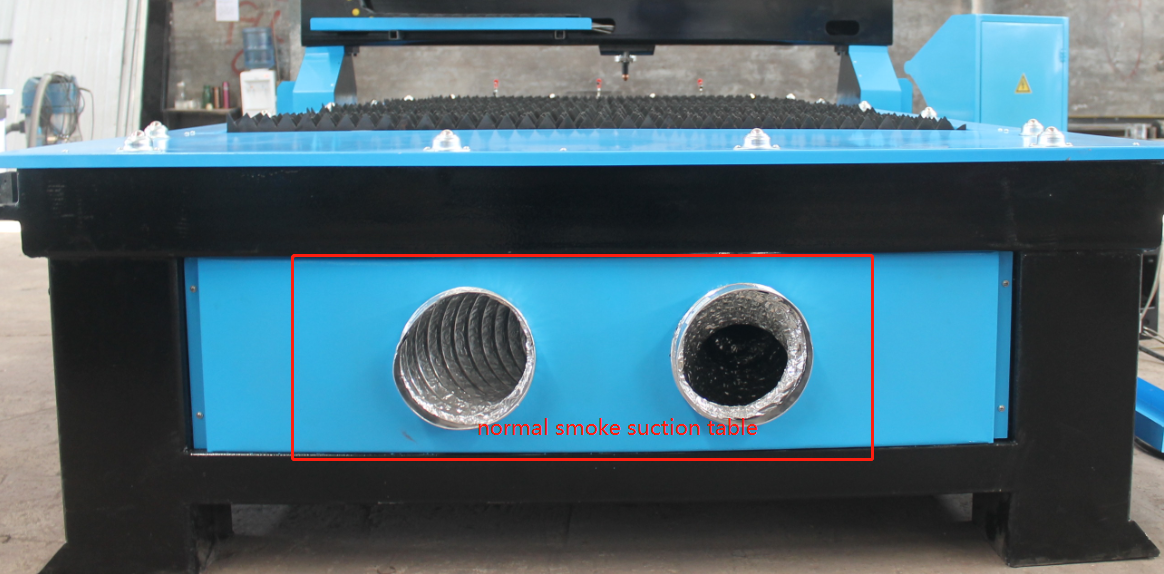

Table------------customer can choose normal table with smoke suction system.

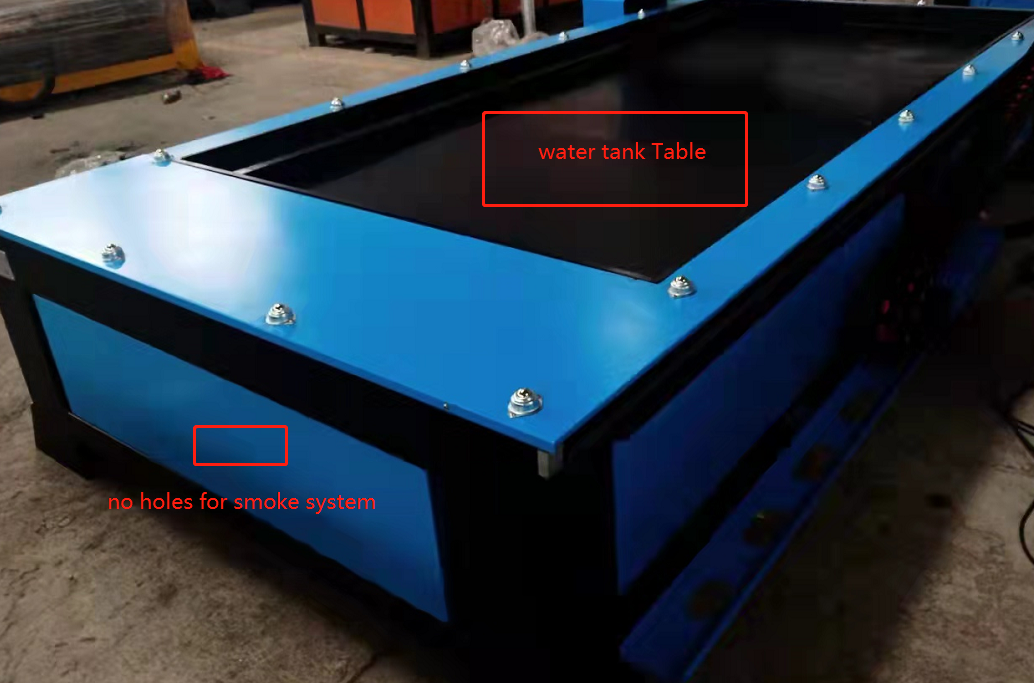

Also customer can choose table with water tank
Table------------customer can choose normal table with smoke suction system.
Also customer can choose table with water tank
