Double head Laser Cutting Machine

Model

YZ1810-2

YZ1813-2

YZ1610-2

Price FOB

Negotiation

Negotiation

Negotiation

Working size

1800*100mm

1800*1300mm

1600*1000mm

Laser Tube

EFR120W-150

EFR120W-150W

EFR120W-150W

Laser Head no.

2

2

2

Max.prodution capacity

1800

pairs/8hours/per day

1800

pairs/8hours/per day

1800

pairs/8hours/per day

Packing size

2.35*2.3*1.3m

2.35*2.45*1.3m

2.2*2.15*1.3m

Water chiller

CW-5200

Laser foucs Lens

II-VI 25mm dia.

Laser reflected lens

II-VI 20mm dia.

Feeding

automatic Stainless convenyor belt

Positioning

Camera

Transmission

Linear rail+ONK belt

Air fan

550W*2

Table

3mm iron

Air compressor

0.8Mpa non-oil low-noise compressor

Motor

Stepper motor Leadshine

Driver

Stepper driver leadshine

Controller

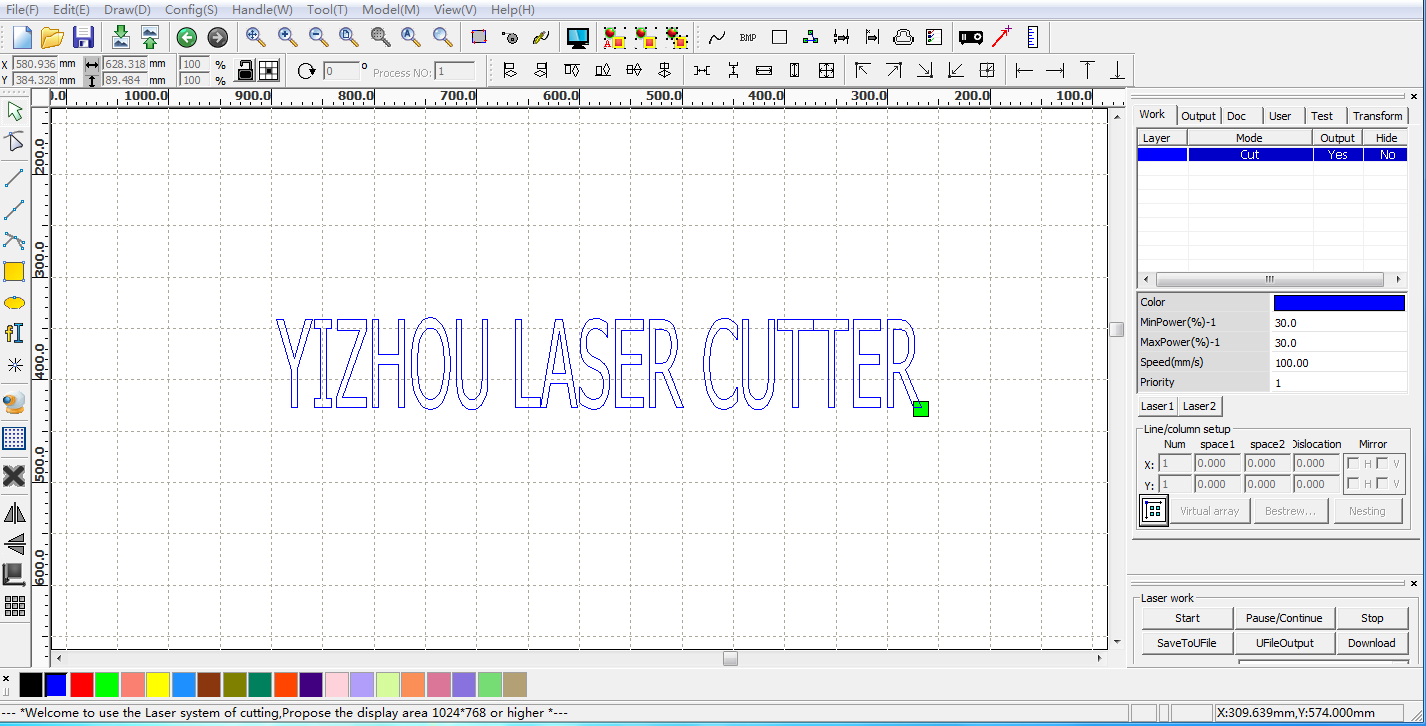

 LaserCAD

Max.Engraving speed

64000mm/min

Max.Cutting speed

36000mm/min

Voltage

220V/50HZ/60HZ

Working Temperature

0-45 degree

Support format

BMP、AI、PLT、DST、DXF

Repeat Position Precision：

≤±0.05mm
