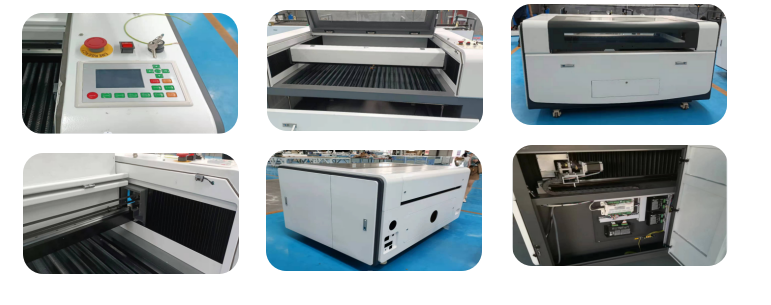

Y1390I Advanced CO2 Laser Engraving & Cutting Machine

1300*900mm working size, Advanced design,Italy PEK linear rail, X axis protected case,Y axis dust protect cover, auto focus, up-down double table,CW5200 water chiller, II-VI lens

Model:
Y1390I
Brand:
YIZHOU

Working size:	1300*900mm
Color:	White-Black
Laser power:	100W 130W
Laser tube brand:	Yongli AS6
Model:	Y1390I
Support format:	DXF,PLT,AI,JPE,JPEG,BMP
Voltage:	110V/220V 50HZ 60HZ
Availability:

Quantity:



Inquire Add to Basket

Applicable Materials:

the machine is very suitable for Acrylic, leather, fabric, textile, wood, plastic, glass, etc non-metal materials

1300*900mm working size, Advanced design,Italy PEK linear rail, X axis protected case,Y axis dust protect cover, auto focus, up-down double table,CW5200 water chiller, II-VI lens

Model	Y1390I
Working size	1300*900mm
Laser power	100W/130W
Working Table	Honey comb or Sword blade Optional： Up-down table
Max.cutting speed	0-36m/min
Max.Engraving Speed	0-64m/min
Transmission	Stepper Motor& Driver
Repeat location accuracy	0.01mm
Working Voltage	110V/220V 50HZ/60HZ
Cooling System	Industrial water chiller CW5000/CW5200
Resolution	1000DPI
Interface	USB+LAN
Format support	DXF, PLT, AI, JPG, JPEG, BMP,PNG etc
Language	Multi-language

Y1390 CO2 laser machine cutting performance Table -- 130W YONGLI AS6 Laser power Cutting performance Table



Materials	thickness	Fastest speed
Acrylic	3mm	40mm/s
	5mm	21mm/s
	8mm	15mm/s
	10mm	11mm/s
	15mm	7mm/s
	20mm	4mm/s
	25mm	1.8mm/s
Die-board	15mm	6mm/s
	18mm	4mm/s
	20mm	2.5mm/s
MDF	3mm	30mm/s
	5mm	21mm/s
	10mm	12mm/s
	15mm	7mm/s

leather	single layer	45mm/s
Fabric	single layer	400mm/s

	3mm	35mm/s
	5mm	30mm/s
Wood	10mm	20mm/s
	15mm	15mm/s

PVC	2mm	90mm/s
	3mm	80mm/s
	4mm	75mm/s

Steel only for mixed laser cutter+O2 oxygen	2mm	8mm/s
	0.5mm	50mm/s
Stainless steel Only for mixed laser cutter+O2 oxygen	1mm	25mm/s
	1.5mm	10mm/s

Dual-color board	2mm	55mm/s


Paper	single layer	450mm/s

Y1390 CO2 laser machine cutting performance Table -- 130W YONGLI AS6 Laser power Cutting performance Table



Materials	thickness	Fastest speed
Acrylic	3mm	40mm/s
	5mm	21mm/s
	8mm	15mm/s
	10mm	11mm/s
	15mm	7mm/s
	20mm	4mm/s
	25mm	1.8mm/s
Die-board	15mm	6mm/s
	18mm	4mm/s
	20mm	2.5mm/s
MDF	3mm	30mm/s
	5mm	21mm/s
	10mm	12mm/s
	15mm	7mm/s

leather	single layer	45mm/s
Fabric	single layer	400mm/s

	3mm	35mm/s
	5mm	30mm/s
Wood	10mm	20mm/s
	15mm	15mm/s

PVC	2mm	90mm/s
	3mm	80mm/s
	4mm	75mm/s

Steel only for mixed laser cutter+O2 oxygen	2mm	8mm/s
	0.5mm	50mm/s
Stainless steel Only for mixed laser cutter+O2 oxygen	1mm	25mm/s
	1.5mm	10mm/s

Dual-color board	2mm	55mm/s


Paper	single layer	450mm/s
