| Working size: | |
|---|---|
| Laser power: | |
| Support format: | |
| Table: | |
| Optional: | |
| Quantity: | |
Name | Model | ||
Model | YZ1630-2 | YZ1625-2 | YZ1620-2 |
Price FOB | Negotiation | Negotiation | Negotiation |
Working size | 1600*3000mm | 1600*2500mm | 1600*2000mm |
Laser Tube | EFR120W-150 | EFR120W-150W | EFR120W-150W |
Laser Head no. | 2 | 2 | 2 |
Max.prodution capacity | 1800 pairs/8hours/per day | 1800 pairs/8hours/per day | 1800 pairs/8hours/per day |
Packing size | 2.35*4.15*1.3m | 2.35*3.5*1.3m | 2.2*3*1.3m |
Water chiller | CW-5200 | ||
Laser foucs Lens | II-VI 25mm dia. | ||
Laser reflected lens | II-VI 20mm dia. | ||
Feeding | automatic Stainless convenyor belt | ||
Positioning | Camera | ||
Transmission | Linear rail+ONK belt | ||
Air fan | 750W*2 550W*1 | ||
Table | 3mm iron | ||
Air compressor | 0.8Mpa non-oil low-noise compressor | ||
Motor | Stepper motor Leadshine | ||
Driver | Stepper driver leadshine | ||

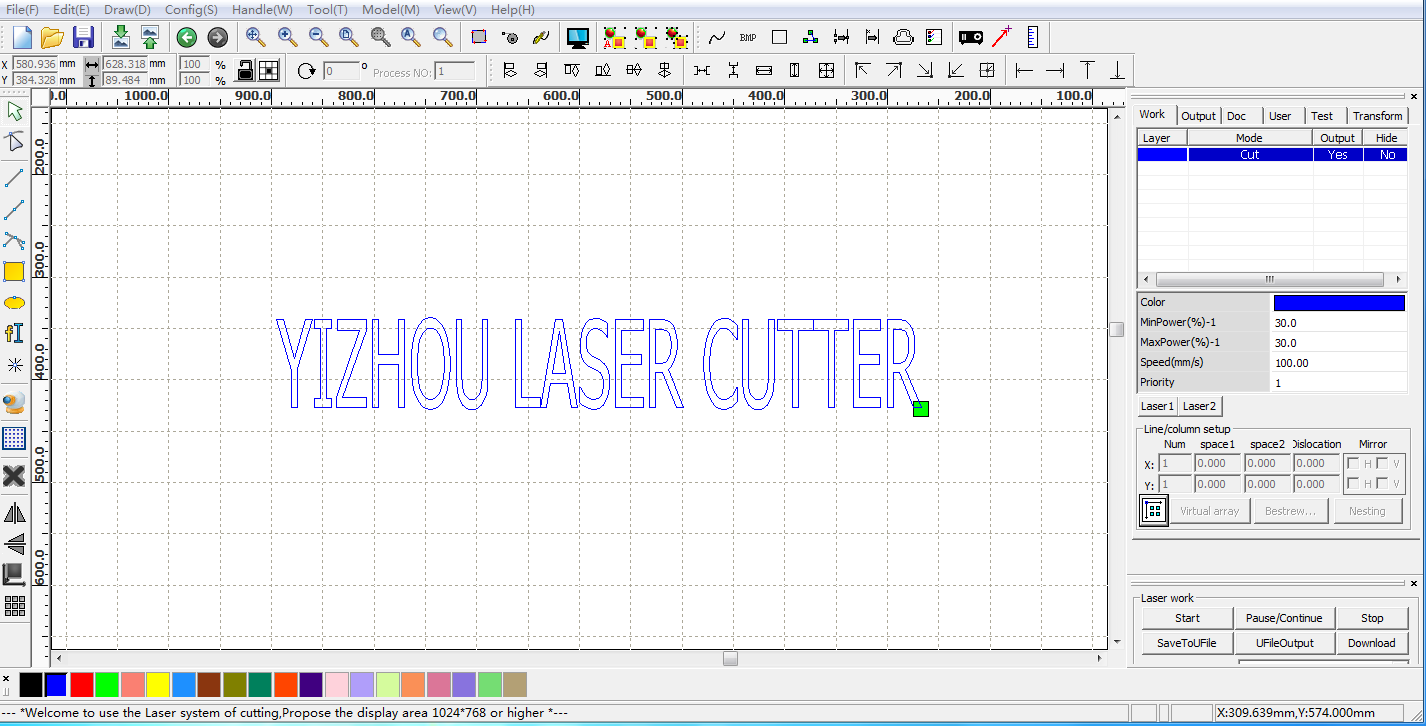

Controller | LaserCAD | ||
Max.Engraving speed | 64000mm/min | ||
Max.Cutting speed | 36000mm/min | ||
Voltage | 220V/50HZ/60HZ | ||
Working Temperature | 0-45 degree | ||
Support format | BMP、AI、PLT、DST、DXF | ||
Repeat Position Precision： | ≤±0.05mm | ||
Industrial Fabric Laser Cutting Machine price Y1630 Applicable for fabric,knitting vamps, non-woven, leather, rexine, cotton, felt, silk, lace, polyester, fleece , softshell,jeans,alcantara,neoprene , Corrugated board, cardboard, white board, gray board, sticker, PVC film, foam board, artificial leather, leather, gasket, sponge, Prepreg, fabric, acrylic, honeycomb board, fiberboard, epoxy resin board, organic glass, car mat, fiber, composite material and other soft materials, etc
Parameters
Industrial Fabric Laser Cutting Machine price Y1630 WIFI connection
Industrial Fabric Laser Cutting Machine price Y1630 not only support USB-COM wire connection,but also WIFI connection. More suitable for larger company to create multi-group machine, via WIFI technology,one computer or laptop can control single or multi Industrial Fabric Laser Cutting Machine price Y1630.
Industrial Fabric Laser Cutting Machine price Y1630 Working samples
Name | Model | ||
Model | YZ1630-2 | YZ1625-2 | YZ1620-2 |
Price FOB | Negotiation | Negotiation | Negotiation |
Working size | 1600*3000mm | 1600*2500mm | 1600*2000mm |
Laser Tube | EFR120W-150 | EFR120W-150W | EFR120W-150W |
Laser Head no. | 2 | 2 | 2 |
Max.prodution capacity | 1800 pairs/8hours/per day | 1800 pairs/8hours/per day | 1800 pairs/8hours/per day |
Packing size | 2.35*4.15*1.3m | 2.35*3.5*1.3m | 2.2*3*1.3m |
Water chiller | CW-5200 | ||
Laser foucs Lens | II-VI 25mm dia. | ||
Laser reflected lens | II-VI 20mm dia. | ||
Feeding | automatic Stainless convenyor belt | ||
Positioning | Camera | ||
Transmission | Linear rail+ONK belt | ||
Air fan | 750W*2 550W*1 | ||
Table | 3mm iron | ||
Air compressor | 0.8Mpa non-oil low-noise compressor | ||
Motor | Stepper motor Leadshine | ||
Driver | Stepper driver leadshine | ||
Controller | LaserCAD | ||
Max.Engraving speed | 64000mm/min | ||
Max.Cutting speed | 36000mm/min | ||
Voltage | 220V/50HZ/60HZ | ||
Working Temperature | 0-45 degree | ||
Support format | BMP、AI、PLT、DST、DXF | ||
Repeat Position Precision： | ≤±0.05mm | ||
Industrial Fabric Laser Cutting Machine price Y1630 Applicable for fabric,knitting vamps, non-woven, leather, rexine, cotton, felt, silk, lace, polyester, fleece , softshell,jeans,alcantara,neoprene , Corrugated board, cardboard, white board, gray board, sticker, PVC film, foam board, artificial leather, leather, gasket, sponge, Prepreg, fabric, acrylic, honeycomb board, fiberboard, epoxy resin board, organic glass, car mat, fiber, composite material and other soft materials, etc
Parameters
Industrial Fabric Laser Cutting Machine price Y1630 WIFI connection
Industrial Fabric Laser Cutting Machine price Y1630 not only support USB-COM wire connection,but also WIFI connection. More suitable for larger company to create multi-group machine, via WIFI technology,one computer or laptop can control single or multi Industrial Fabric Laser Cutting Machine price Y1630.
Industrial Fabric Laser Cutting Machine price Y1630 Working samples
