Y1390 CO2 Laser Cutting Engraving Machine for MDF Acrylic Wood

Share to:
sharethis sharing button
1.Rapid cutting function for curved lines: any curved line can be cut successively and rapidly; running path of laser heads is like beautiful arc lines produced by the greatest racing cars.
2.Design software of CAD,CORELDRAW,PHOTOSHOP are all supported for friendly human-computer interface and demand of the industries on-the-spot.
3.Multi-file function: this series machine can store 256 working files for users to choose needed files on the engraving machine under condition of off-line so that mass production of 256 different products can be realized easily.
4.Signales do not have change and anti-disturbance ability is strong during long distance transportation when whole light segrating system operating with high speed differential input and output circuit design which has 12 working state for output and working state for input to adapt to processing on-the spot.
5.Cutting surface is smooth and precise during large area laser cutting for cutting and engraving demand of various customers and industries.
6.Stable light path,industrial chiller to make sure the same output laser power from every site of working platform,high speed and efficiency,stable processing quality.
7.These kind of machine is applied in craft and gifts,packaging and printing,stone,wood furniture,toys,electron,model,paper products,building decoration,etc.
  • Y1390

  • YIZHOU

Working size:
Laser tube power:
Laser tube Brand:
Table:
Cooling type:
Controller:
Color:
Availability:
Quantity:

Applicable Materials:

the machine is very suitable for Acrylic, leather, fabric, textile, wood, plastic, glass, etc non-metal materials

Functions: engraving and cutting.


Model

Y1390

Working size

1300*900mm

Laser power

100W/130W

Working Table

Honey comb or Sword blade Optional: Up-down table

Max.cutting speed

0-36m/min

Max.Engraving Speed

0-64m/min

Transmission

Stepper Motor& Driver

Repeat location accuracy

0.01mm

Working Voltage

110V/220V 50HZ/60HZ

Cooling System

Industrial water chiller CW5000/CW5200

Resolution

1000DPI

Interface

USB+LAN

Format support

DXF, PLT, AI, JPG, JPEG, BMP,PNG etc

Language

Multi-language

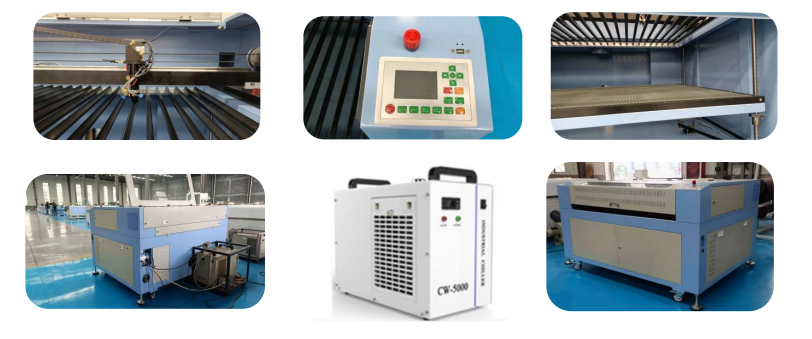

Y1390-CO2-laser-machine-photo


Y1390 CO2 laser machine cutting performance Table
-- 130W YONGLI  AS6 Laser power Cutting performance Table

Materials

thickness

Fastest speed

Acrylic

3mm

40mm/s

5mm

21mm/s

8mm

15mm/s

10mm

11mm/s

15mm

7mm/s

20mm

4mm/s

25mm

1.8mm/s

Die-board

15mm

6mm/s

18mm

4mm/s

20mm

2.5mm/s

MDF

3mm

30mm/s

5mm

21mm/s

10mm

12mm/s

15mm

7mm/s




leather

single layer

45mm/s

Fabric

single layer

400mm/s





3mm

35mm/s


5mm

30mm/s

Wood

10mm

20mm/s


15mm

15mm/s




PVC

2mm

90mm/s


3mm

80mm/s


4mm

75mm/s




Steel
only for mixed laser cutter+O2 oxygen

2mm

8mm/s


0.5mm

50mm/s

Stainless steel
Only for mixed laser cutter+O2 oxygen

1mm

25mm/s


1.5mm

10mm/s




Dual-color board

2mm

55mm/s







Paper

single layer

450mm/s
