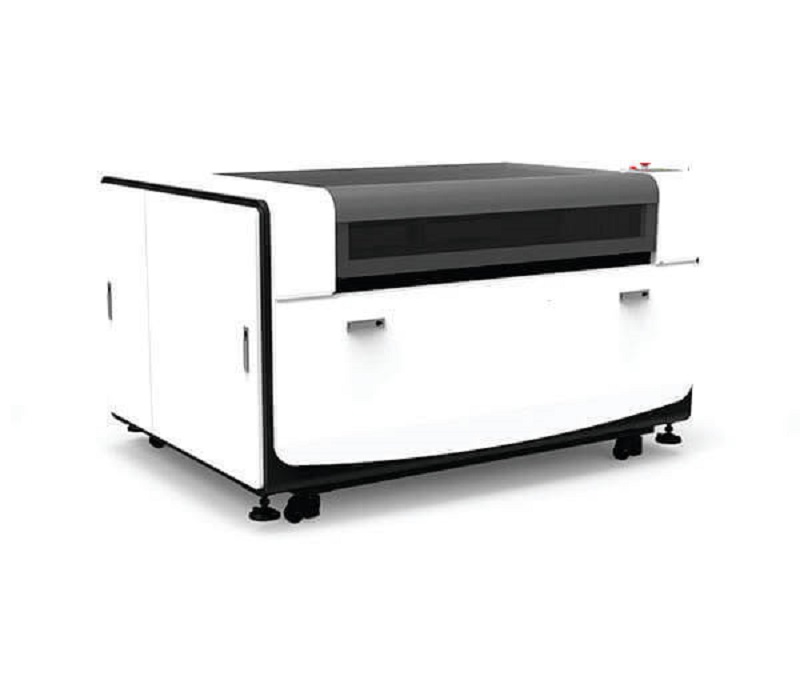

Y1610I
YIZHOU
| Working size: | |
|---|---|
| Color: | |
| Laser power: | |
| Model: | |
| Support format: | |
| Voltage: | |
| Availability: | |
| Quantity: | |
Workin Working size g size | 1600*1000mm 11300*900mm |
Cutting depth | ≤25mm（according to material） |
Laser power | YONGLI AS6 130W |
Laser type | CO2 glass laser tube |
Laser power supply | 150W |
Mirror and Lens | 25mm Dia. Si mirror; 20mm Dia. Znse IIV-VI lens |
Engraving speed | 1-60000mm/min |
Control system | RDC6442S/RDC6445G RUIDA |
Control Software | RDWORKS V8 |
Working Table | Up and down table |
Laser head | with Pen style Auto focus and red dot positioning |
Protector | XY dust cover protection |
Safety system | Three light alarm system+case open working stop system |
Air compressor power | Haili 135W |
Motor&Driver | Stepper Motor&Driver |
Exhaust fan Power | 550W |
Transm Transmission ission | Italy PEK linear rail+ONK belt Italy PEK linear rail+ONK belt |
Cutting speed | 1-10000mm/min |
Resolution ratio | ≤0.0125mm |
Interface | USB2.0 |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Cooling type | Circulation water cooling CW5000 |
Support format | JPG,JPEG, PLT, DST, PLT, BMP, DXF, AI |
Voltage | 110V/220V 50HZ 60HZ |
Operating temperature | 0-45C |
Operating humidity: | 5-95% |
Warranty | Machine:1 year, Laser tube:12 months |
N.W/G.W | 550KGS/620KGS |
Size | 2.07*1.53*1.2m 40Q container:14SETS |
Workin Working size g size | 1600*1000mm 11300*900mm |
Cutting depth | ≤25mm（according to material） |
Laser power | YONGLI AS6 130W |
Laser type | CO2 glass laser tube |
Laser power supply | 150W |
Mirror and Lens | 25mm Dia. Si mirror; 20mm Dia. Znse IIV-VI lens |
Engraving speed | 1-60000mm/min |
Control system | RDC6442S/RDC6445G RUIDA |
Control Software | RDWORKS V8 |
Working Table | Up and down table |
Laser head | with Pen style Auto focus and red dot positioning |
Protector | XY dust cover protection |
Safety system | Three light alarm system+case open working stop system |
Air compressor power | Haili 135W |
Motor&Driver | Stepper Motor&Driver |
Exhaust fan Power | 550W |
Transm Transmission ission | Italy PEK linear rail+ONK belt Italy PEK linear rail+ONK belt |
Cutting speed | 1-10000mm/min |
Resolution ratio | ≤0.0125mm |
Interface | USB2.0 |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Cooling type | Circulation water cooling CW5000 |
Support format | JPG,JPEG, PLT, DST, PLT, BMP, DXF, AI |
Voltage | 110V/220V 50HZ 60HZ |
Operating temperature | 0-45C |
Operating humidity: | 5-95% |
Warranty | Machine:1 year, Laser tube:12 months |
N.W/G.W | 550KGS/620KGS |
Size | 2.07*1.53*1.2m 40Q container:14SETS |
